6 Axes Fanuc Welding Robot Payload 12kg Reach 1441mm Fanuc Robotic Welder

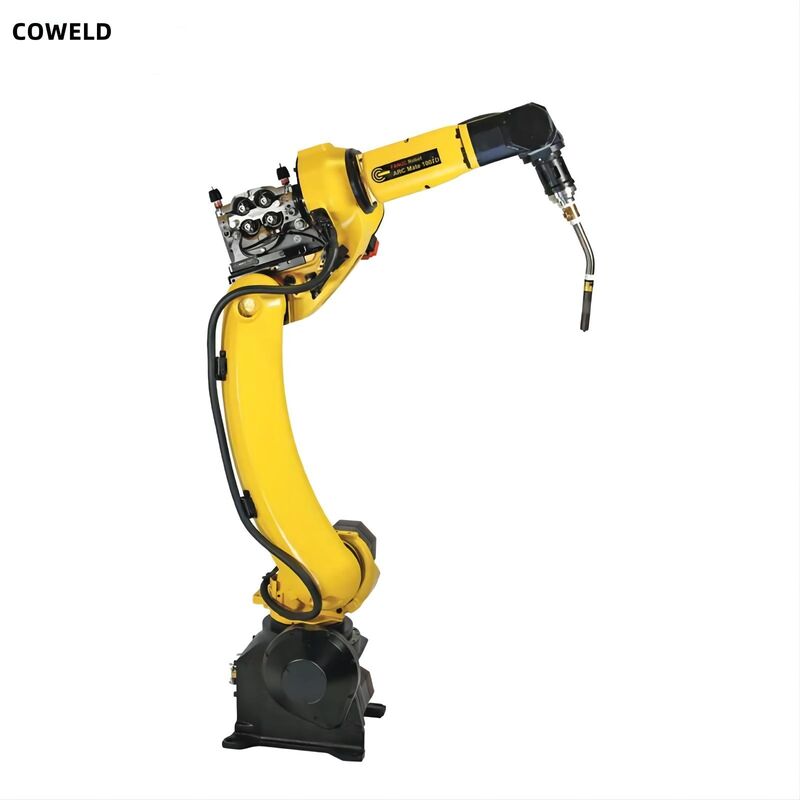

Fanuc ARC Mate 10iD Robot Payload 12kg / Reach 1441mm

Payload 12kg | Reach 1420mm | Axes 6

Features

The FANUC ARC Mate 100iD series robot is speci cally designed for arc welding applications. It features a hollow wrist for torch cable integration and highest motion performance for its class.

• A rigid arm combined with advanced servo technology enable maximum speed and acceleration performance. This reduces cycle time by up to 15%.

• A unique wrist axis drive mechanism encased witihin the slimmest wrist available in an ARC robot allows for operation in narrow spaces and high density installation.

• Smooth torch cable routing and easy maintenance through a hollow forearm provides excellent cable management with stable wire feeding for high performance welding.

• The robot can integrate weld power cables in addition to wire feeder control cables and assist gas hoses.

• Enhanced wrist load capacity allows support of various torch tools such as sensor units, Servo Torch and tandem torch.

• Various optional intelligent functions are available, such as iRVision, collision detection and coordinated motion.

Specifications
