0.8mm- 2.4mm Copper Alloy Welding Wire 8.5Kg/m3 Silicon Bronze Welding Wire

0.8mm- 2.4mm Copper Alloy Welding Wire 8.5Kg/m3 Silicon Bronze Welding Wire
0.8mm- 2.4mm Copper Alloy Welding Wire 8.5Kg/m3 Silicon Bronze Welding Wire

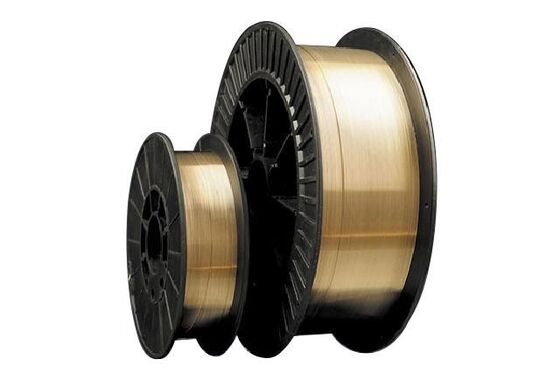

Large Image :  0.8mm- 2.4mm Copper Alloy Welding Wire 8.5Kg/m3 Silicon Bronze Welding Wire

Product Details:
Place of Origin: China
Brand Name: Coweld
Model Number: ERCuSi-A
Payment & Shipping Terms:
Minimum Order Quantity: 500kgs
Price: USD10.7-12.7/kgs
Packaging Details: pallet
Delivery Time: 5-15 days
Supply Ability: 100T/month
Contact Now

0.8mm- 2.4mm Copper Alloy Welding Wire 8.5Kg/m3 Silicon Bronze Welding Wire

Description
Name: Copper Alloy Welding Wire
Highlight:

2.4mm Copper Alloy Welding Wire

,

Copper Alloy Welding Wire 8.5Kg/m3

,

0.8mm Silicon Bronze Welding Wire



Silicon Bronze Copper alloys welding wire
Trade Mark:
HS211
GB/T9460:
SCu6560
AWS A5.7/5.8:
ERCuSi-A
EN 14640:
CuSi3Mn
Product description

Chemical composition:

Executive
standard		 Classification
number		 Alloy
number		 Cu Al Fe Mn Ni P Pb Si Sn Zn Total amount of
other elements
ISO24373 Cu6560 CuSi3Mn1 bal. 0.02 0.5 0.5-1.5 - 0.05 0.02 2.8-4.0 0.2 0.4 0.5
GB/T9460 SCu6560 CuSi3Mn bal. max0.01 max0.5 max1.5 - - max0.02 2.8-4.0 max1.0 max1.0 max0.5
BS EN14640 Cu6560 CuSi3Mn1 bal. 0.01 0.5 0.5-1.5 - 0.02 0.02 2.8-4.0 0.2 0.2 0.4
AWS A5.7 C65600 ERCuSi-A bal. 0.01 0.5 1.5 - - 0.02 2.8-4.0 1.0 1.0 0.5
DIN 1733 2.1461 SG-CuSi3 bal. Max0.01 Max0.3 0.5-1.5 - max0.02 max 0.02 2.8-4.0 max0.2 max0.2 max0.4

Physical properties of materials:

Density Kg/m3 8.5
Melting range ℃ 965-1030
Thermal conductivity W/m.K 35
Electrical conductivity S.m/mm² 3.5-4.0
Coefficient of thermal expansion 10-6/K(20-300℃) 18.1

Standard values of the weld metal:

Elongation % 40
Tensile strength N/mm2 345
Notched bar impact work J 55
Brinell hardness HB 2.5/62.5 80

Applications:

　　Joining and overlay welding of copper zinc alloys,low copper materials,also for an excellent wear resisting overlay welding on low and unalloyed steel as well as cast iron.For MIG overlay welding of large work pieces preheating is recommended.For multilayer welding on steels,pulsed arc welding is recommended.Appropriate for MIG brazing of zinc coated sheets.

Make up:

　　Diameter:0.80 - 1.00 - 1.20 - 1.60 -2.40

　　Spools:D100,D200,D300,K300,KS300,BS300

　　Rods:1.20 – 8.0 mm x350mm-1000 mm

　　Barrel:0.80-1.6mm 150kg,200kg,250kg

　　Electrodes available.

　　Further make ups on request.



Tag:

Silicon Bronze Welding Wire,

ER4043 Welding Wire,

Tig Welding Aluminum Wire
