Corrosion Resistant AWS A5.14 ERNICRMO-3 Welding Wire / Rod

I'm Online Chat Now

Corrosion Resistant AWS A5.14 ERNICRMO-3 Welding Wire / Rod

Corrosion Resistant  AWS A5.14 ERNICRMO-3 Welding Wire / Rod
Corrosion Resistant  AWS A5.14 ERNICRMO-3 Welding Wire / Rod

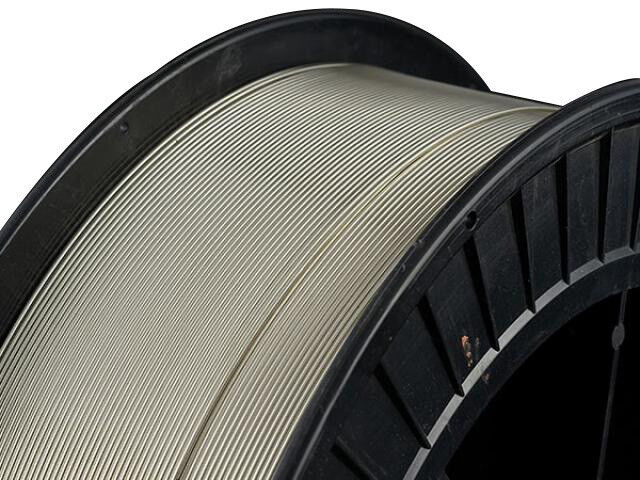

Large Image :  Corrosion Resistant AWS A5.14 ERNICRMO-3 Welding Wire / Rod

Product Details:
Place of Origin: China
Brand Name: Coweld
Model Number: ERNICRMO-3
Payment & Shipping Terms:
Minimum Order Quantity: 100kgs
Packaging Details: spool or box
Delivery Time: 5-15 days
Payment Terms: L/C, D/A, D/P, T/T

Corrosion Resistant AWS A5.14 ERNICRMO-3 Welding Wire / Rod

Description
Color: Bright Material: Nickle Alloy
Package: Spool Or Box Name: Nickel Alloy Welding Wire
Highlight:

AWS A5.14 ERNICRMO-3 Welding Wire

,

ERNICRMO-3 Welding Rod

AWS A5.14 ERNICRMO-3 WELDING WIRE/ROD welding consumables



COWELD is one of the leading suppliers, exporter, stockiest of MIG/TIG welding wires, rods and electrodes. AWS A5.14 Specification for the classification of bare nickel and nickel-alloy bare welding strip electrodes and welding rods. Filler metal Grade ErNiCrMo-3 is designed to match the composition and properties of 625 and used for the high-temperature strength and structural stability, is also used for its resistance to general corrosion, pitting, crevice and stress corrosion cracking in severe chloride media. ERNiCrMo-3 welding electrodes and rods are used for welding of 9% Ni steels, alloy 625, alloy 825, alloy 25-6MO, and a range of high alloy Austenitic and super Austenitic stainless steels alloy 904L. It is also used for surfacing of steel and various corrosion-resistant alloys such as alloy 20.





Specifications

Weld Process: Mig/Tig (GTAW) and SAW welding
Coils wires 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm
Straight wires 2.0mm,2.4mm,3.0mm,4.0mm
Surface treatment: Bright finish



ERNiCrMo-3 Classification Comparison

Present Corresponding A 5.11 UNS.No Military ISO 18274
ERNiCrMo-3 ENiCrMo-3 N06625 EN625/RN625 S Ni6625



ERNiCrMo-3 Chemical Composition

Ni, min Cr Mo C Si Ti Fe Cu· Mn Al S P
64.2 22.4 9.0 0.03 0.05 0.22 0.20 0.10 0.05 0.1 0.001 0.01



ERNiCrMo-3 Mechanical Property

Yield strength, psi Tensile Strength, psi Elongation, %
66,000 114,000 35

Our nickel and nickel alloy welding wires have wide applications because of their high quality and stability. The nickel alloy welding wires ERNiCrMo-3 supplied by us are in strict accordance with AWS A5.14 and other equivalent standards like AWS A5.11. We provide not only high-quality products but also have access to a vast stock of aluminum, stainless steel, titanium and other alloys to American(AWS, ASTM), European(EN, DIN, ISO) and Chinese(GB) specifications. We are here and our experienced technical team is waiting to help you with your inquiry, so contact us now!
