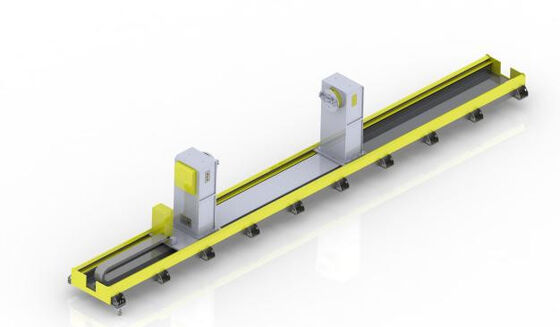

Versatility Robotic Welding Positioner 0-20000mm/min Continuous Welding Robot Positioner

一, Technical data FINAL CONFIRMATION BASE ON DRAWING



2, PHRAME

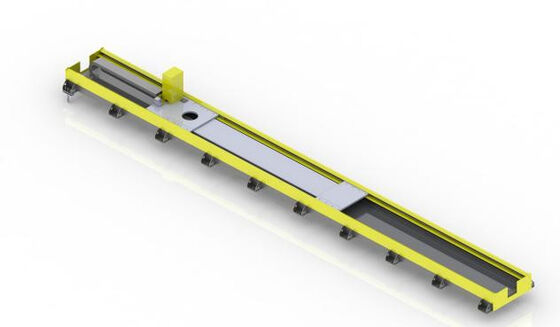

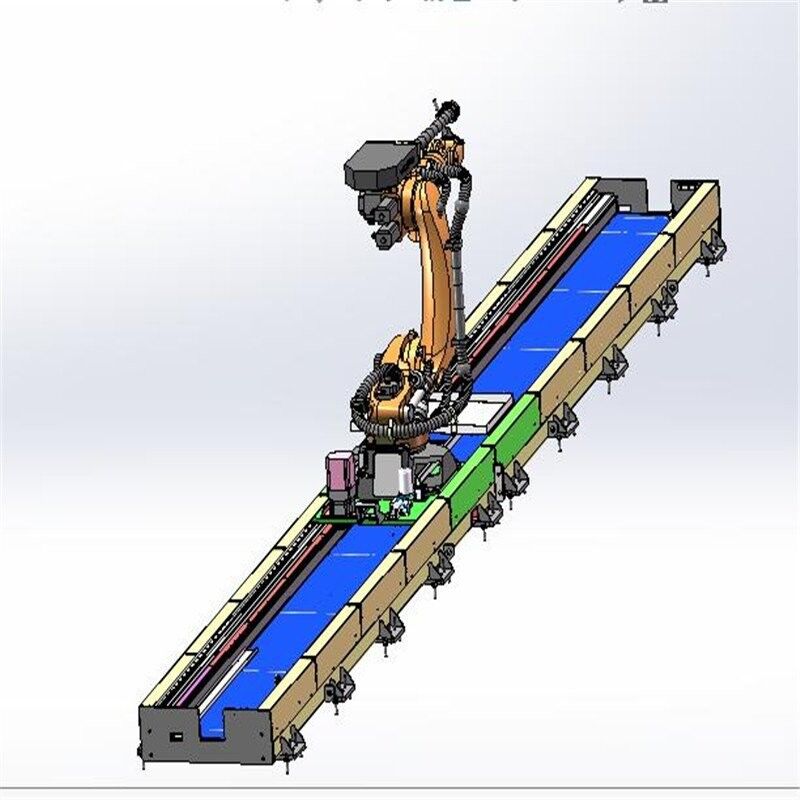

The walking rail for robotics is semi closed. its assembled with standardized modules and mainly composed by mechanical parts,driving power,lubrication system and shielding cover;

The mechanical parts joined by standardized modules(easy to improving) and welded with high qualified steel plate by robot,treated by heating,mechanical processing.make sure its more stable and accurately;its surface sprayed by anti rust painting,letting its more shinning.

The power equipped by precision reducer and servo motor as its main section,carried by gear transmission, high precision linear rail and its sliding basement as guiding mechanism ensure walking track more precision

With automatic lubrication system can fuel slider regularly

The semi closed structure and metal cover easy to transport and let people eyes on its more longer

3, MAIN SECTION



4,COLOR
