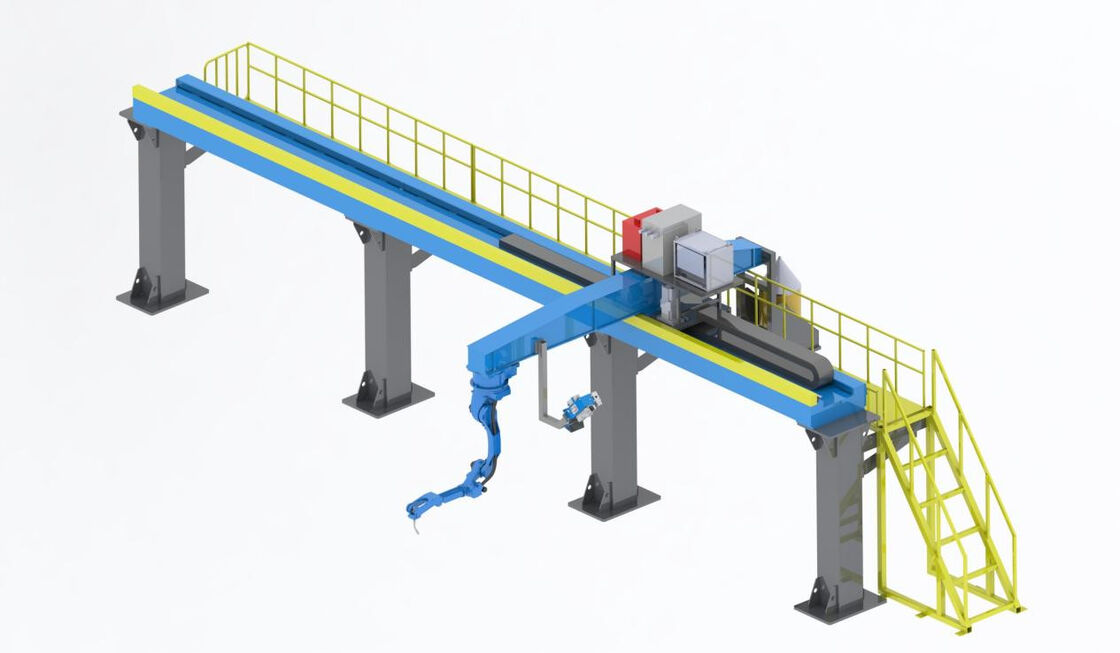

OEM Robotic Welding Positioner Cw-Tg-X-D-M- Single Highway Walking Track

一,Techical details技术参数(设备外形尺寸及数据以双方最终确认的数模及会签图纸为准FINAL CONFIRMATION)

二, PHRAME

The walking rail for robotics is semi closed.its assembled with standardized modules and mainly composed by mechanical parts,driving power,lubrication system and shielding cover;

The mechanical parts joined by standardized modules(easy to improving) and welded with high qualified steel plate by robot,treated by heating,mechanical processing.make sure its more stable and accurately;its surface sprayed by anti rust painting,letting its more shinning.

The power equipped by precision reducer and servo motor as its main section,carried by gear transmission, high precision linear rail and its sliding basement as guiding mechanism ensure walking track more precision

With automatic lubrication system can fuel slider regularly

The semi closed structure and metal cover easy to transport and let people eyes on its more longer

三,Main configuration

四, COLOR
